 FC1104
Vous devez etre connecté pour consulter les stocks, vos conditions, et la disponibilité des produits sur nos dépots.

-- SE CONNECTER --

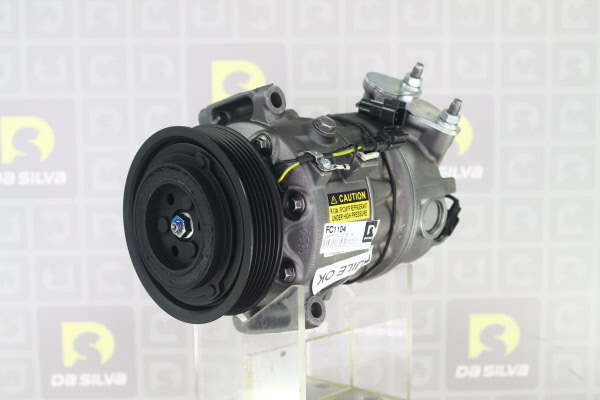

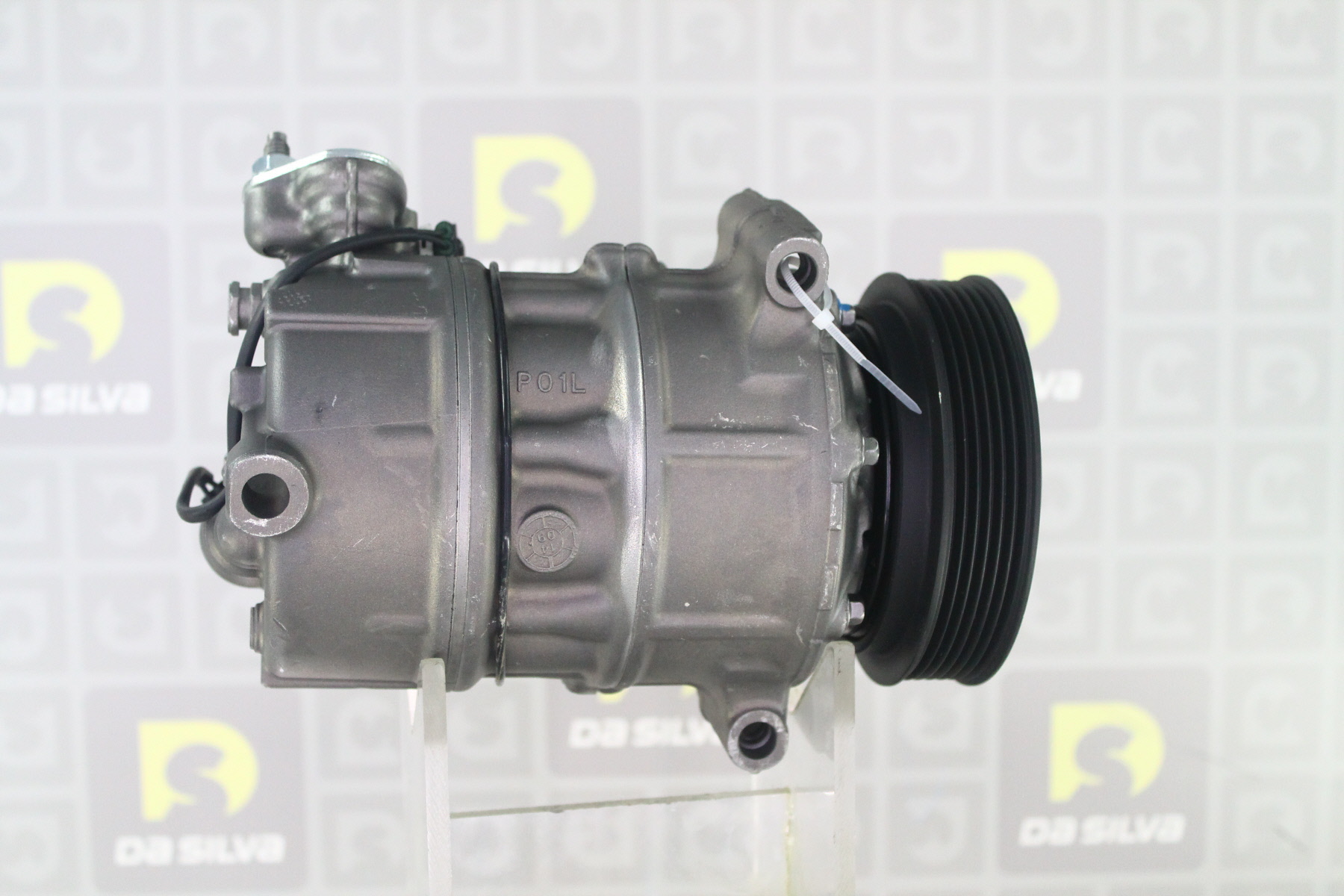

  FC1104 :: COMP.VOLVO T5 / D4
Montage d'origineSanden
Voltage [V]12 V
Poulie pour courroies - Ø [mm]110 mm
Pouliesavec poulie à gorge
Remplissage huile [ml]100 ml
Huile pour compresseurPAG 46 YF
ID du compresseurPXC16
ID-embrayagePVR6
Nombre de gorges6
Réfrigérant1234yf
3599771868072   Code Carc. 85   330x220x210 mm   7.18 Kgs

Documents & Annexes

[pdf]       BT-106.pdf     Instructions de montage du compresseur
[pdf]       BT-107.pdf     Rinçage du circuit
[pdf]       BT-109.pdf     Fonctionnement du circuit de climatisation
[pdf]       BT-113.pdf     Réfrigérants avec traceur UV intégré
[pdf]       BT-133.pdf     Refus des carcasses compresseurs
[pdf]       BT-918.pdf     Catalogue Accessoires de climatisation



Liste des affectations sur véhicules

MarqueModeleTypePuissanceDatesInformations

VOLVOS60 (2010-)T3112 kw03.2015 > 05.2018
VOLVOS60 (2010-)T3110 kw04.2010 > 12.2015
VOLVOS60 (2010-)T3112 kw03.2015 > 05.2018
VOLVOS60 (2010-)T4132 kw04.2010 > 12.2015
VOLVOS60 (2010-)T4F132 kw04.2011 > 12.2015
VOLVOS60 (2010-)T4140 kw03.2015 > 05.2018
VOLVOS60 (2010-)T5180 kw09.2013 > 12.2018
VOLVOS60 (2010-)T5 AWD180 kw07.2014 > 12.2018
VOLVOS60 (2010-)2.0 Polestar AWD270 kw06.2015 > 05.2018
VOLVOS60 (2010-)T5177 kw04.2010 > 12.2014
VOLVOS60 (2010-)T5 AWD187 kw08.2015 > 12.2018
VOLVOS60 (2010-)T6225 kw09.2013 > 12.2018
VOLVOS60 (2010-)T6 AWD225 kw09.2015 > 12.2018
VOLVOS60 (2010-)T6 AWD224 kw04.2010 > 12.2015
VOLVOS60 (2010-)T6 AWD242 kw04.2014 > 12.2015
VOLVOS60 (2010-)D288 kw03.2015 > 05.2018
VOLVOS60 (2010-)D3110 kw03.2015 > 05.2018
VOLVOS60 (2010-)D4133 kw09.2013 > 12.2015
VOLVOS60 (2010-)D4140 kw03.2015 > 05.2018
VOLVOS60 (2010-)D5165 kw03.2015 > 05.2018
VOLVOS60 (2010-)D3100 kw05.2012 > 12.2015
VOLVOS60 (2010-)D4 Drive-E Polestar147 kw03.2015 > 05.2018
VOLVOS60 (2010-)D5 Drive-E Polestar171 kw03.2015 > 05.2018
VOLVOS60 (2010-)D3120 kw04.2010 > 12.2014
VOLVOS60 (2010-)D4120 kw04.2010 > 12.2014
VOLVOS60 (2010-)D4 AWD140 kw03.2015 > 05.2018
VOLVOS60 (2010-)D5151 kw04.2010 > 12.2011
VOLVOS60 (2010-)D5 AWD151 kw04.2010 > 12.2011
VOLVOS60 (2010-)D5158 kw04.2011 > 12.2015
VOLVOS60 (2010-)D5 AWD158 kw04.2011 > 12.2015
VOLVOS60 (2010-)D5169 kw04.2014 > 12.2015
VOLVOS60 (2010-)D5 AWD169 kw04.2014 > 12.2015
VOLVOS60 II Cross Country (134)T5 AWD180 kw06.2016 > 12.2018
VOLVOS60 II Cross Country (134)D3110 kw03.2015 > 05.2018
VOLVOS60 II Cross Country (134)D4140 kw03.2015 > 05.2018
VOLVOS60 II Cross Country (134)D4 Drive-E Polestar147 kw03.2015 > 05.2018
VOLVOS60 II Cross Country (134)D4 Polestar AWD162 kw03.2015 > 07.2018
VOLVOS80 (2006) (AS)T5162 kw01.2014 > 12.2016
VOLVOS80 (2006) (AS)T5180 kw09.2013 > 05.2014
VOLVOS80 (2006) (AS)2.0 Drive- E180 kw12.2014 > 12.2016
VOLVOS80 (2006) (AS)T5177 kw10.2010 > 12.2016
VOLVOS80 (2006) (AS)D4133 kw09.2013 > 12.2016
VOLVOS80 (2006) (AS)D3100 kw05.2012 > 05.2014
VOLVOS80 (2006) (AS)D3 / D4120 kw01.2010 > 12.2016
VOLVOS90 II (234)T4140 kw10.2017 > 12.2021
VOLVOS90 II (234)T4 Polestar155 kw06.2019 > 12.2021
VOLVOS90 II (234)T5184 kw10.2017 > 12.2021
VOLVOS90 II (234)T5187 kw03.2016 > 12.2021
VOLVOS90 II (234)T5 Drive-E Polestar186 kw10.2017 > 12.2021
VOLVOS90 II (234)T5 Drive-E Polestar192 kw03.2016 > 12.2021
VOLVOS90 II (234)T6 AWD228 kw10.2017 > 12.2021
VOLVOS90 II (234)T6 AWD235 kw03.2016 > 12.2021
VOLVOS90 II (234)T6 Drive-E Polestar AWD240 kw10.2017 > 12.2021
VOLVOS90 II (234)T6 Drive-E Polestar AWD246 kw03.2016 > 12.2021
VOLVOS90 II (234)B4 Mild-Hybrid145 kw03.2020
VOLVOS90 II (234)B5 Mild-Hybrid184 kw03.2020
VOLVOS90 II (234)D3110 kw03.2016 > 12.2021
VOLVOS90 II (234)D4140 kw03.2016 > 12.2021
VOLVOS90 II (234)D4 AWD140 kw03.2016 > 12.2021
VOLVOS90 II (234)D4 Drive-E Polestar147 kw03.2016 > 12.2021
VOLVOS90 II (234)D4 Drive-E Polestar AWD147 kw03.2016 > 12.2021
VOLVOS90 II (234)D5 AWD173 kw03.2016 > 12.2021
VOLVOS90 II (234)D5 Polestar AWD177 kw06.2019 > 12.2021
VOLVOV60T290 kw10.2015 > 03.2017
VOLVOV60T3112 kw03.2015 > 05.2018
VOLVOV60T3112 kw03.2015 > 05.2018
VOLVOV60T4140 kw03.2015 > 05.2018
VOLVOV60T5162 kw01.2014 > 12.2017
VOLVOV60T5180 kw10.2013 > 12.2018
VOLVOV60T5 AWD180 kw07.2014 > 05.2018
VOLVOV60T6225 kw10.2013 > 12.2018
VOLVOV60T6 AWD225 kw10.2013 > 12.2018
VOLVOV602.0 Polestar AWD270 kw06.2015 > 05.2018
VOLVOV60T5157 kw10.2013 > 05.2018
VOLVOV60T5177 kw09.2010 > 12.2014
VOLVOV60T5 AWD187 kw04.2015 > 05.2018
VOLVOV60T6 AWD224 kw07.2010 > 12.2015
VOLVOV60T6 AWD242 kw04.2014 > 12.2015
VOLVOV60D288 kw03.2015 > 05.2018
VOLVOV60D3110 kw03.2015 > 05.2018
VOLVOV60D4133 kw10.2013 > 12.2015
VOLVOV60D4140 kw03.2015 > 05.2018
VOLVOV60D5165 kw03.2015 > 05.2018
VOLVOV60D3100 kw05.2012 > 12.2015
VOLVOV60D3 / D4120 kw07.2010 > 12.2014
VOLVOV60D4 AWD120 kw05.2012 > 12.2015
VOLVOV60D4 AWD133 kw10.2013 > 12.2015
VOLVOV60D4 AWD140 kw03.2015 > 05.2018
VOLVOV60D5151 kw07.2010 > 12.2011
VOLVOV60D5169 kw04.2014 > 12.2015
VOLVOV60D5 AWD151 kw07.2010 > 12.2011
VOLVOV60D5158 kw04.2011 > 12.2015
VOLVOV60D5 AWD158 kw04.2011 > 12.2015
VOLVOV60D5 Hybrid AWD169 kw03.2015 > 05.2018
VOLVOV60D5 AWD169 kw04.2014 > 12.2015
VOLVOV60 I Cross Country (157)T5180 kw03.2015 > 05.2018
VOLVOV60 I Cross Country (157)T5 AWD180 kw06.2016 > 05.2018
VOLVOV60 I Cross Country (157)T5 Drive-E Polestar186 kw03.2015 > 07.2018
VOLVOV60 I Cross Country (157)T5 Drive-E Polestar AWD186 kw03.2015 > 07.2018
VOLVOV60 I Cross Country (157)D288 kw03.2015 > 05.2018
VOLVOV60 I Cross Country (157)D3110 kw03.2015 > 05.2018
VOLVOV60 I Cross Country (157)D4140 kw03.2015 > 05.2018
VOLVOV60 I Cross Country (157)D4 Drive-E Polestar147 kw03.2015 > 05.2018
VOLVOV60 I Cross Country (157)D4 Polestar AWD147 kw03.2015 > 05.2018
VOLVOV60 I Cross Country (157)D4 Polestar AWD162 kw03.2015 > 05.2018
VOLVOV60 I Cross Country (157)D5165 kw03.2015 > 05.2018
VOLVOV60 II (225)D4140 kw02.2018 > 12.2021
VOLVOV60 II (225)D4 AWD140 kw09.2018 > 12.2021
VOLVOV60 II (225)D4 Polestar147 kw02.2018 > 12.2021
VOLVOV60 II (225)D4 Polestar AWD147 kw02.2018 > 12.2021
VOLVOV60 II Cross Country (227)D4 AWD140 kw12.2018 > 12.2021
VOLVOV60 II Cross Country (227)D4 Polestar AWD147 kw02.2018 > 12.2020
VOLVOV70 (07-16) Break (P3_)T4132 kw10.2010 > 12.2015
VOLVOV70 (07-16) Break (P3_)T4F132 kw01.2011 > 12.2015
VOLVOV70 (07-16) Break (P3_)T4140 kw03.2015 > 04.2016
VOLVOV70 (07-16) Break (P3_)T5180 kw10.2013 > 04.2016
VOLVOV70 (07-16) Break (P3_)T5177 kw01.2010 > 12.2014
VOLVOV70 (07-16) Break (P3_)D288 kw03.2015 > 04.2016
VOLVOV70 (07-16) Break (P3_)D4133 kw10.2013 > 04.2016
VOLVOV70 (07-16) Break (P3_)D3100 kw10.2007 > 12.2015
VOLVOV70 (07-16) Break (P3_)D3110 kw03.2015 > 04.2016
VOLVOV70 (07-16) Break (P3_)D3 / D4120 kw03.2010 > 12.2015
VOLVOV90 II Break (235,236)B6 Mild-Hybrid AWD256 kw03.2020
VOLVOV90 II Break (235,236)T4140 kw10.2017 > 12.2021
VOLVOV90 II Break (235,236)T4 Polestar155 kw06.2019 > 12.2021
VOLVOV90 II Break (235,236)T5184 kw10.2017 > 12.2021
VOLVOV90 II Break (235,236)T5 Polestar186 kw06.2019 > 12.2021
VOLVOV90 II Break (235,236)T5187 kw03.2016 > 12.2018
VOLVOV90 II Break (235,236)T6 AWD228 kw10.2017 > 12.2021
VOLVOV90 II Break (235,236)T6 AWD235 kw03.2016 > 12.2018
VOLVOV90 II Break (235,236)T6 Polestar AWD240 kw10.2017 > 12.2021
VOLVOV90 II Break (235,236)T6 Plug-in-Hybrid AWD250 kw06.2020 > 12.2022
VOLVOV90 II Break (235,236)D3110 kw03.2016 > 12.2021
VOLVOV90 II Break (235,236)D3 AWD110 kw03.2016 > 12.2021
VOLVOV90 II Break (235,236)D4120 kw09.2018 > 12.2021
VOLVOV90 II Break (235,236)D4140 kw03.2016 > 12.2021
VOLVOV90 II Break (235,236)D4 AWD140 kw03.2016 > 12.2021
VOLVOV90 II Break (235,236)D4 Polestar147 kw10.2016 > 12.2021
VOLVOV90 II Break (235,236)Polestar AWD147 kw10.2016 > 12.2021
VOLVOV90 II Break (235,236)D5 AWD173 kw03.2016 > 12.2021
VOLVOV90 II Break (235,236)D5 Polestar AWD176 kw10.2016 > 12.2021
VOLVOV90 II Cross Country (236)T5 AWD184 kw10.2017
VOLVOV90 II Cross Country (236)T5 Polestar AWD186 kw10.2017
VOLVOV90 II Cross Country (236)T5 AWD187 kw03.2016 > 12.2018
VOLVOV90 II Cross Country (236)T5 Drive-E Polestar AWD192 kw10.2016 > 12.2018
VOLVOV90 II Cross Country (236)T6 AWD228 kw10.2017
VOLVOV90 II Cross Country (236)T6 AWD235 kw10.2016
VOLVOV90 II Cross Country (236)T6 Polestar AWD240 kw10.2017
VOLVOV90 II Cross Country (236)D4 AWD120 kw09.2018
VOLVOV90 II Cross Country (236)D4 AWD140 kw10.2016
VOLVOV90 II Cross Country (236)D5 AWD173 kw10.2016
VOLVOV90 II Cross Country (236)D5 Polestar AWD176 kw10.2016
VOLVOXC60 Break (09-17)T5180 kw10.2013 > 02.2017
VOLVOXC60 Break (09-17)T5 AWD180 kw10.2015 > 02.2017
VOLVOXC60 Break (09-17)T6225 kw10.2013 > 02.2017
VOLVOXC60 Break (09-17)T6 AWD225 kw10.2013 > 12.2017
VOLVOXC60 Break (09-17)T5177 kw09.2010 > 02.2017
VOLVOXC60 Break (09-17)T5 AWD187 kw04.2014 > 02.2017
VOLVOXC60 Break (09-17)T6 AWD210 kw05.2008 > 12.2010
VOLVOXC60 Break (09-17)T6 AWD224 kw03.2010 > 02.2017
VOLVOXC60 Break (09-17)T6 AWD242 kw04.2014 > 12.2015
VOLVOXC60 Break (09-17)D4133 kw10.2013 > 12.2015
VOLVOXC60 Break (09-17)D3100 kw04.2012 > 12.2015
VOLVOXC60 Break (09-17)D3110 kw03.2015 > 04.2017
VOLVOXC60 Break (09-17)D3 / D4120 kw03.2010 > 12.2014
VOLVOXC60 Break (09-17)D4140 kw03.2015 > 02.2017
VOLVOXC60 Break (09-17)D4 AWD140 kw03.2015 > 02.2017
VOLVOXC60 Break (09-17)D4 AWD133 kw10.2013 > 12.2015
VOLVOXC60 I VAN (156)D3100 kw09.2013 > 12.2015
VOLVOXC60 I VAN (156)D4120 kw09.2013 > 02.2017
VOLVOXC60 I VAN (156)D4 AWD120 kw09.2013 > 02.2017
VOLVOXC60 II (246)D4140 kw03.2017 > 12.2021
VOLVOXC60 II (246)D4 AWD140 kw03.2017 > 12.2021
VOLVOXC70 (07-16) BreakT5180 kw10.2013 > 12.2016
VOLVOXC70 (07-16) BreakD4133 kw10.2013 > 04.2016
VOLVOXC90 II (256)T5 Drive-E Polestar AWD176 kw10.2017 > 12.2020
VOLVOXC90 II (256)T5 AWD183 kw02.2016 > 12.2018
VOLVOXC90 II (256)T5 AWD184 kw10.2017 > 12.2020
VOLVOXC90 II (256)T5 Polestar AWD186 kw07.2019 > 12.2020
VOLVOXC90 II (256)T5 AWD187 kw06.2015 > 12.2021
VOLVOXC90 II (256)T6 AWD228 kw10.2017 > 12.2021
VOLVOXC90 II (256)T6 AWD235 kw09.2014 > 12.2018
VOLVOXC90 II (256)T5 Drive-E Polestar AWD192 kw10.2017 > 12.2021
VOLVOXC90 II (256)T6 Polestar AWD240 kw10.2017 > 12.2021
VOLVOXC90 II (256)T6 Polestar AWD246 kw01.2017 > 12.2021
VOLVOXC90 II (256)D4140 kw06.2015 > 12.2018
VOLVOXC90 II (256)D4 AWD140 kw10.2015 > 12.2018
VOLVOXC90 II (256)D5 AWD165 kw09.2014 > 12.2016
VOLVOXC90 II (256)D5 DRIVe Polestar AWD176 kw03.2016 > 12.2021
VOLVOXC90 II (256)D5 Polestar AWD177 kw10.2018 > 12.2021
VOLVOXC90 II (256)D5 AWD173 kw03.2016 > 12.2019





  Questions fréquentes   |   Utilisation des cookies   |   RGPDDA SILVA SAS - 280 rue Léon Joulin - BP 80396 - 31103 Toulouse Cédex 1
Page générée en 0.1246 sec, 23 req SQL, 0 req EDI, C=7(2/26)
Da Silva Revenir au début de la page Se connecter    Rechercher
(réf DS, réf OE, Type mines)
